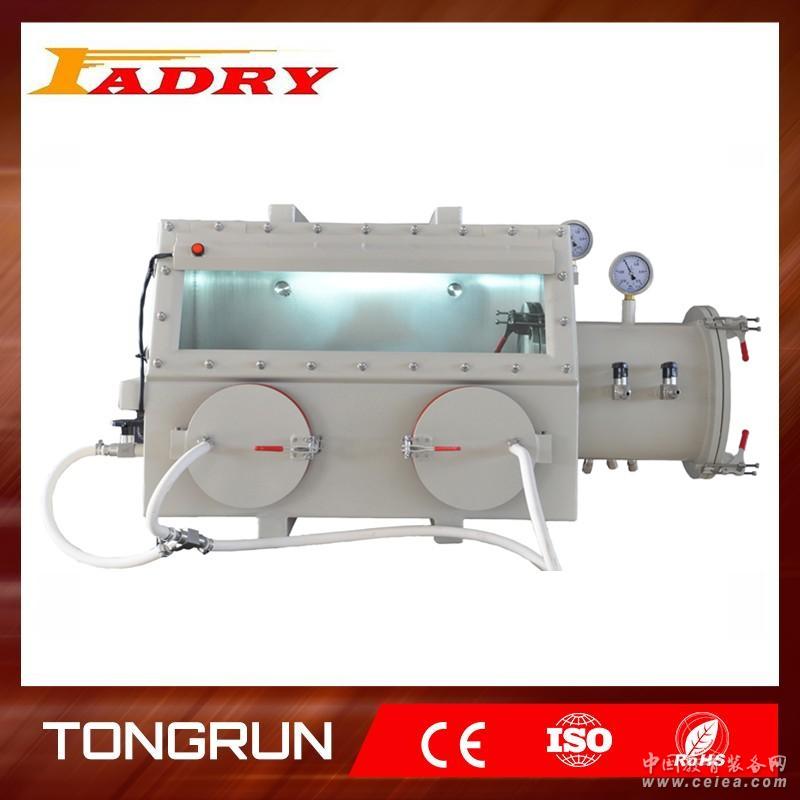

产品详细介绍1Adry Glove Box System—VGB-1
1Adry use the best each part and newest technology for our customer. These new technologies enable us to offer glove boxes with the lowest leak rate and highest purity levels in the industry.
Heavy duty stainless steel structure glove box: a clean, air-tight, controlled environment for a wide range of researching processes in battery research, material science, chemistry, nano-research
and semiconductor and related industries.
1Adry Lab Glove Box Specification
Model Number VGB-1
Material Stainless SUS304, 3MM
Main Chamber Dimension 600mm(L)×450mm(W)×420mm(H)
Main Chamber Pressure Max. Positive Pressure: 0.1MPa
Max. Vacuum Level: -0.1MPa
Antechamber Dimension made of 304 stainless steel ø210mm, length =260mm, right side,
with slidable tray inside
Antechamber Pressure Max. Positive Pressure: 0.1MPa
Max. Vacuum Level: -0.1MPa(Absolute Vacuum situation)
Window Panel 1 Transparent Front Panel Removable tempered window with 2 glove ports (12mm)
Gloves 1 pairs of Latex gloves
Lighting System 1 Lighting System (110V~250V)
Pressure Gauge 1 Pressure Gauge on Antechamber, Germany WIKA brand
KF Connectors Standard KF-25 connectors and needle valves
Option
1.Oxygen monitoring unit (0 -1000 PPM )
2.Moisture monitoring unit(0-1000 PPM)
3.Automatic Pressure Controller
4.Automatic Humidity Controller (1-99%RH)
5.Solvent removal system
6.Open loop / Closed-loop HEPA Filters
7.High speed vacuum pump (1.5L/S High speed vacuum pump)
8.Purification System
|
|
