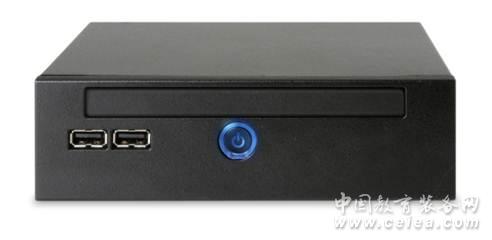

產品詳細介紹CPU
Support Intel Sandy Bridge mobile CPU TDP=35W
CHIPSET
PCH: Intel HM65 express chipset
MEMORY
DDRIII SO-DIMM 1366 x 2 up to 16GB (based on supported Os)
GRAPHICS
Intel HD graphic 3000
LAN
Intel Gb Ethernet - WG82579LM
AUDIO
Realtek HD AUDIO CODEC – ALC662
EXPANSION SLOTS
mini card slot x 2 (half size & full size)
Full size support mSATA module
Storage Device
2.5” SATAⅢ HDD x 1
Module Options
WLAN: 802.11b+g+n
TV tuner card: DVBT hybrid ATSC
AOpen UB01, DC01
On Board I/O
NA
Front Panel I/O
Power HDD indicator LED
USB 2.0 x 2
Rear Panel I/O
USB 3.0 x 2
DVI-I x 1
Display port x 1
HD Audio with speaker out , Microphone in.
RJ45 GbE LAN x 1
COM port x 1 (RS232)
DC 20/12V connector (with 20V 90W power adaptor)
Form Factor
166(W) x 157(L) x 48 (H) mm
Weight : 1.22 Kg
Volume : 1.25 liters
|
|
