产品型号：CMW500
产品代码：
产品价格：5650
计量单位：台
折 扣 率： 0
最后更新：2016-08-02
关 注 度：6997
生产企业：深圳市美佳特贸易有限公司
|
|
|
 与企业联系时请告知该信息来自教育装备网！ |
|
|

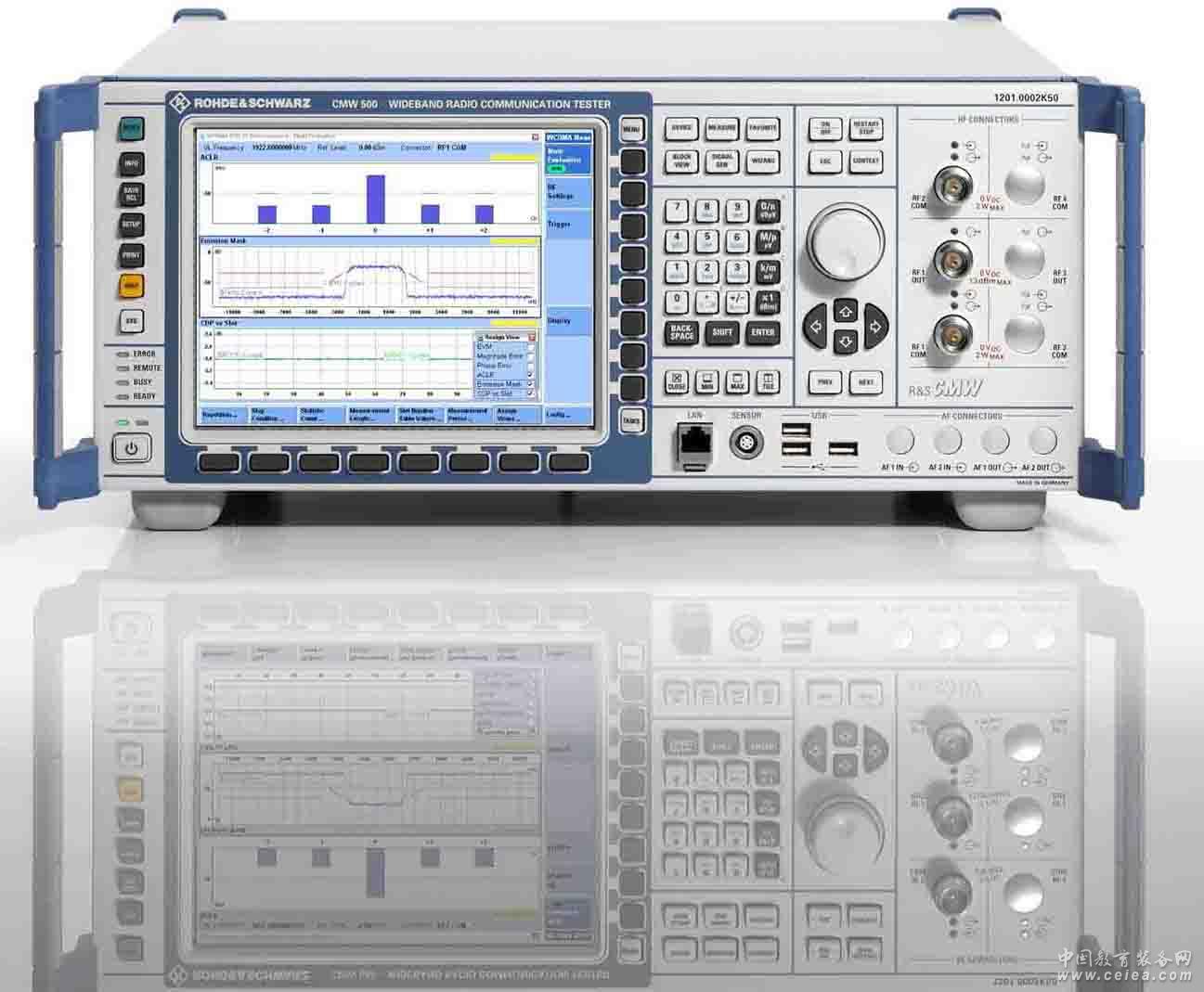

产品详细介绍 R&S CMW500 无线通信综合测试 测试标准 支持GSM、GPRS、EDGE、EDGE Evolution、Mobile WiMAX?、LTE FDD/TDD、TD-SCDMA、WCDMA/HSDPA、HSPA+、CDMA2000、1xEV-DO、GPS、Bluetooth、WLAN a/b/g/n、DVB-T、T-DMB、CMMB、FM stereo、Media FLO? 主要特性与技术指标1）基本模块：通用RF 功率计和带有List 模式的CW 发生器，可以完成无线设备的快速校准2）矢量信号分析仪（VSA）用来进行发射机验证3）矢量信号发生器（VSG）用来进行扩展的接收机测试：ARB 模式可以缩短配置时间或在线模式可以处理高数据容量的复杂信号4）通过直接连接R&S?NRP-Zxx 功率探头可启动参考RF 功率测量5）使用集成RF接口可方便地连接到具有复杂RF架构的无线设备6）当前先进的图形化用户界面（GUI）7）通过LAN/GPIB 接口进行SCPI 远程控制8）支持LXI Class C B100A CMW H100A Baseband Measurement UnitB110A CMW H110A ARB+Realtime Baseband Generator ModuleB200A CMW H200A Signaling Unit Universal(SUU)B230A CMW H230A 1xEV-DO Signalling Extension Module for H200AB270A CMW H270A WiMAX Signaling Extension Module for H200AB300A CMW H300A Signaling Unit Wideband (SUW)B450A Data application unitB510A CMW H510A, four digital IQ interfaces (inputs/outputs/monitor)B520A Digital I/Q 5 to 8 H520AB570A CMW H570A RF converter module (TRX)B570B CMW H570B RF converter module (TRX)B590A CMW H590A RF Frontend moduleB612A CMW H612A IEEE Bus Interface Module (single connector)B612B CMW H612B IEEE Bus Interface Module (dual connector)B620A CMW H620A Digital Video Interface (DVI) Module (only required for units with display/keB660A CMW H660A Option CarrierB661A CMW H661A Ethernet Switch BoardB690A CMW H690A OCXO ModuleB690B CMW H690B OCXO Module (highly stable)C3 3 years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).DCV-2 Documentation of calibration valuesKA700 Permanent CMW license: Application Enabler, extension Convergence Sublayer IPv4, WiMAX(IEEE802.16e)KB036 Permanent CMW license : Extended Frequency Range 3.3 GHz to 6 GHzKC420 Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 Ciphering GCF WI-101KC421 Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 CPC Tests GCF WI-070KC422 Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 64QAM testsKC423 Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 L2 enhancements testsKF502 Permanent CMW License: LTE FDD MLAPI Basic ProceduresKF503 LTE FDD MLAPI EPS Bearer VerificationKF504 Intra-LTE Handover and MobilityKG200 Permanent CMW licence: Generator, GSM/GPRS/EDGE, DownlinkKG400 Permanent CMW licence: Generator, WCDMA, DownlinkKG401 Permanent CMW license: Generator, WCDMA HSPA extension of CMW-KG400, DownlinkKM010 Permanent CMW license: FTT spectrum analyzerKM011 Permanent CMW license: TX measurement "IQ Versus Slot", UplinkKM012 Permanent CMW license: TX measurement Multi Evaluation List ModeKM200 Permanent CMW license: TX Measurement, GSM/GPRS/EDGE, UplinkKM400 Permanent CMW license: TX Measurement, WCDMA, uplinkKM401 Permanent CMW license: TX measurement, WCDMA HSPA, extension of CMW-KM400, UplinkKM403 Permanent CMW license: TX measurement, WCDMA HSPA+ extension of CMW-KM401, UplinkKM500 Permanent CMW license: TX measurement LTE FDD, UplinkKM610 Permanent CMW license: TX measurement, BluetoothKM650 Permanent CMW license: TX Measurement WLAN (IEEE 802.11a/b/g)KM700 Permanent CMW license: TX Measurements, Mobile WiMAX (IEEE 802.16e)KM701 Permanent CMW license: TX measurement, extension for R&D applications, WiMAX(IEEE802.16e), Wave 1KM750 Permanent CMW license: TX Measurement, TD-SCDMA, uplinkKM800 Permanent CMW license: TX Measurement, CMDA2000? 1xRTT, Reverse LinkKM880 Permanent CMW license: TX Measurement, 1xEV-DO, Reverse LinkKP080 Perma |
|
